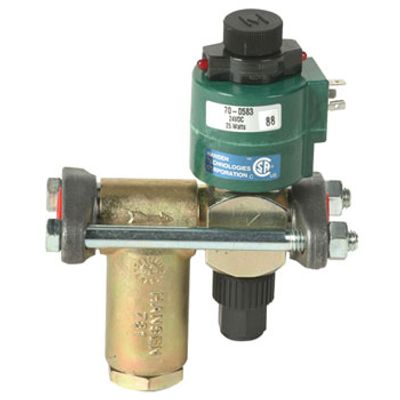

HS6 SOLENOID VALVE

This flanged, industrial refrigeration duty solenoid valve is very simple and compact but rugged in construction. Body is plated steel alloy with a direct lifting stainless steel plunger that contains a teflon seat that closes on a stainless steel orifice. When electrically energized, seat opens wide; when de-energized, it closes to stop flow in the arrow direction on the valve body.

This small, direct lifting valve is used primarily as a pilot for various larger gas-powered or liquid powered main valves, as a remote pilot for back pressure regulators or other devices, or as a liquid stop valve for expansion valves, float valves, or as a general purpose pilot line for ammonia, R22, R134a, CO2 and other approved refrigerants or oil.

Features:

• Encapsulated Hansen standard coil
• 300 psi (20 bar) MOPD
• Available close-coupled strainer
• Heavy-duty, direct lift
• CSA Certified Status
• Non-asbestos gaskets

Available Models (With Strainer, Without Strainer)

HS6 (Size: 5/32", 4mm)
