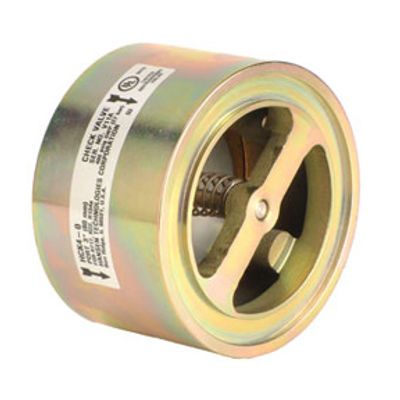

HCK4 Inline check valve

The HCK4 series of dependable, compact, rugged in-line check valves (disc type non-return valves) is ideally suited for refrigerant flow control applications.

• Valves open wide for flow in the arrow direction on the valve body. Valves close quickly and reliably when flow reversals occur.
• Plated bodies and stainless steel seat discs and springs enable them to withstand expected industrial refrigeration conditions.
• Check valves can be mounted in any position and close coupled to other valves.

Available Model (Flanged)

HCK4-2 (Size: 5/8", 16mm)

HCK4-3 (Size: 3/4", 20mm)

HCK4-4 (Size: 1"0, 25mm)

HCK4-5 (Size: 1-1/4", 32mm)

HCK4-7 (Size: 1-1/2, 40mm)

HCK4-8 (Size: 2"0, 50mm)

HCK4-9 (Size: 2-1/2", 65mm)

HCK4-0 (Size: 3"0, 80mm)

HCK4-1 (Size: 4"0, 100mm)
