Hand Expansion Valve
Product Information
These precision-calibrated, adjustable, slotted plug flow regulating valves (hand expansion valves) are ideal for metering or flashing expansion of liquid refrigerants.
Their slotted plugs are more tolerant of dirt particles than are common metal-seated tapered plug expansion valves, and are less susceptible to wire drawing.

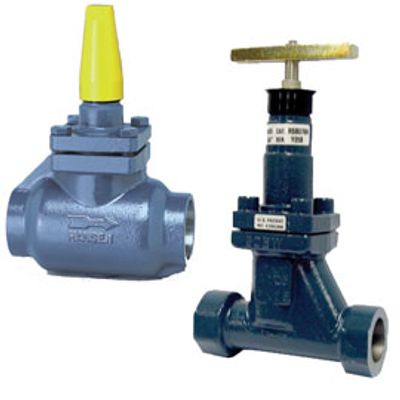

Valves 2½” (65 mm) and larger have a characterized plug. All valves have near linear flow characteristics per turn open and are tight closing with Teflon seats. These valves have stainless steel stems with back seating for seal replacement. The patented non-leak seal plus packing design permits low torque operation for valve adjustments since the packing nut requires little tightening. Bar handle or yellow seal caps distinguish them from shut-off valves.
Suitable for ammonia or halocarbons.
Available Size (For Ammonia, Halocarbons, CO2)
Size: 3/8", 10mm
Thread / Screwed Bonnet
RT038H - Globe, Bar Handle
RT038C - Globe, Seal Cap
VT038H - Angle, Bar Handle
VT038C - Angle, Seal Cap
Size: 1/2", 13mm Size: 1/2", 13mm
Thread / Screwed Bonnet Threaded
RT051H - Globe, Bar Handle RTB051H - Globe, Bar Handle
RT051C - Globe, Seal Cap RTB051C - Globe, Seal Cap
VT051H - Angle, Bar Handle VTB050H - Angle, Bar Handle
VT051C - Angle, Seal Cap VTB050C - Angle, Seal Cap
Size: 1/2", 13mm Size: 1/2", 13mm
Socket Weld Butt Weld
RTB051H - Globe, Bar Handle RWB051H - Globe, Bar Handle
RTB051C - Globe, Seal Cap RWB051C - Globe, Seal Cap
VTB050H - Angle, Bar Handle VWB050H - Angle, Bar Handle
VTB050C - Angle, Seal Cap VWB050C - Angle, Seal Cap
Size: 3/4", 20mm Size: 3/4", 20mm
Thread / Screwed Bonnet Threaded
RT076H - Globe, Bar Handle RTB076H - Globe, Bar Handle
RT076C - Globe, Seal Cap RTB076C - Globe, Seal Cap
VT076H - Angle, Bar Handle VTB075H - Angle, Bar Handle
VT076C - Angle, Seal Cap VTB075C - Angle, Seal Cap
Size: 3/4", 20mm Size: 3/4", 20mm
Socket Weld Butt Weld
RSB076H - Globe, Bar Handle RWB076H - Globe, Bar Handle
RSB076C - Globe, Seal Cap RWB076C - Globe, Seal Cap
VSB075H - Angle, Bar Handle VWB075H - Angle, Bar Handle
VSB075C - Angle, Seal Cap VWB075C - Angle, Seal Cap
Size: 1"0, 25mm Size: 1"0, 25mm
Socket Weld Butt Weld
RSB101H - Globe, Bar Handle RWB101H - Globe, Bar Handle
RSB101C - Globe, Seal Cap RWB101C - Globe, Seal Cap
VSB100H - Angle, Bar Handle VWB100H - Angle, Bar Handle
VSB100C - Angle, Seal Cap VWB100C - Angle, Seal Cap
Size: 1"0, 25mm
Threaded
RTB101H - Globe, Bar Handle
RTB101C - Globe, Seal Cap
VTB100H - Angle, Bar Handle
VTB100C - Angle, Seal Cap
Size: 1-1/4", 32mm Size: 1-1/4", 32mm
Socket Weld Butt Weld
RSB126H - Globe, Bar Handle RWB126H - Globe, Bar Handle
RSB126C - Globe, Seal Cap RWB126C - Globe, Seal Cap
VSB125H - Angle, Bar Handle VWB125H - Angle, Bar Handle
VSB125C - Angle, Seal Cap VWB125C - Angle, Seal Cap
Size: 1-1/4", 32mm
Threaded
RTB126H - Globe, Bar Handle
RTB126C - Globe, Seal Cap
VTB125H - Angle, Bar Handle
VTB125C - Angle, Seal Cap
Size: 1-1/2", 40mm Size: 1-1/2", 40mm
Socket Weld Butt Weld
RS150H - Globe, Bar Handle RW150H - Globe, Bar Handle
RS150C - Globe, Seal Cap RW150C - Globe, Seal Cap
VS150H - Angle, Bar Handle VW150H - Angle, Bar Handle
VS150C - Angle, Seal Cap VW150C - Angle, Seal Cap
Size: 2"0, 50mm Size: 2"0, 50mm
Socket Weld Butt Weld
RS200H - Globe, Bar Handle RW201H - Globe, Bar Handle
RS200C - Globe, Seal Cap RW201C - Globe, Seal Cap
VS200H - Angle, Bar Handle VW201H - Angle, Bar Handle
VS200C - Angle, Seal Cap VW201C - Angle, Seal Cap
Size: 2-1/2", 65mm
Butt Weld
RW251H - Globe, Bar Handle
RW251C - Globe, Seal Cap
VW251H - Angle, Bar Handle
VW251C - Angle, Seal Cap
Size: 3"0, 80mm
Butt Weld
RW301H - Globe, Bar Handle
RW301C - Globe, Seal Cap
VW301H - Angle, Bar Handle
VW301C - Angle, Seal Cap
Size: 4"0, 100mm
Butt Weld
RW402H - Globe, Bar Handle
RW402C - Globe, Seal Cap
VW402H - Angle, Bar Handle
VW402C - Angle, Seal Cap
