ENCAPSULATED SOLENOID COIL KITS AND PILOT LIGHTS

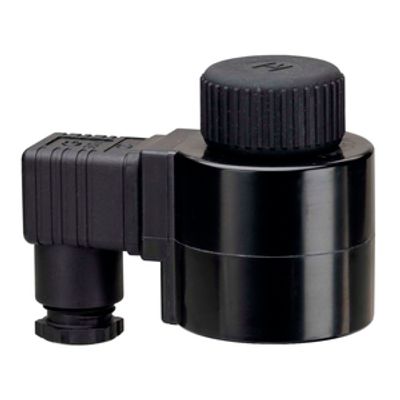

All Hansen solenoid valves utilize a one-size encapsulated, watertight coil. These coils are strong and efficient, requiring only 16 watts of power. All common voltages and frequencies are available. Coils are designed to operate from 85% to 110% of rated voltage. Pilot light assemblies are also available. The pilot light assemblies require no additional wiring.

The standard coil connection is a ½” female straight pipe fitting (NPSM) for conduit, with two 18” long, insulated 18 AWG wire leads plus ground wire. Coils with a DIN plug or a Quick Disconnect plug are available where codes permit. All coils meet NEMA 3R (IP32) (rainproof) and NEMA 4 (splashproof) requirements. This sealed construction can withstand direct contact with splashing or hose-directed water, wind blown dust or rain, and remain undamaged by the formation of ice.

Features:

• One coil fits all valve sizes
• Low wattage
• Encapsulated, watertight design
• Operates on standard voltages
• Combination 50/60Hz coil
• Can be used with European/Danish coils using
• Coil Adapter Kit 70-1104
• Easily installed, no tools required
• Long life wireless pilot light optional

Available Models (Kit Includes Coil, Knob & O-Ring

70-1085 (115V, 18" Leads)

70-1086 (230V, 18" Leads)

70-1087 (24VAC, 18" Leads)

70-1088 (115V, Plug In Less DIN Socket)

70-1089 ( 230V, Plug In Less DIN Socket)

70-1090 (24VAC, Plug In Less DIN Socket)

70-1091 (24VDC, Plug In Less DIN Socket)

70-1092 (115V, Plug In With DIN Socket)

70-1093 (230V, Plug In With DIN Socket)

70-1094 (24VAC, Plug In With DIN Socket)

70-1095 (24VDC, Plug In With DIN Socket)

70-1105 (115V, Junction Box)

70-1106 (230V, Junction Box)

70-1155 (115V, Conduit 60" Leads)

70-1156 (230V, Conduit 60" Leads)

70-1100 (Red Pilot Light Kit, AC Coils Only)

70-1101 (Amber Pilot Light Kit, AC Coils Only)

70-1102 (Green Pilot Light Kit, AC Coils Only)
