BUTT WELD SHUT OFF VALVE

Product Information

Hansen low pressure drop refrigerant shut-off valves are designed to be butt-welded directly to steel piping, thereby eliminating potential leaky flanges or threaded joints and simplifying installation. Cast steel bodies are lightweight, yet have substantial wall thickness to overcome corrosion potential.


The cast steel body is rigid, reducing the potential for seat leakage due to flexing of the valve body under abnormal conditions. The “heart” of Hansen shut-off valves is the patented no-leak seal-plus-stempacking design. This seal design is used exclusively on Hansen shut-off valves and virtually eliminates stem seal leakage.


Available Model (For Ammonia, Halocarbons, CO2)


Globe, Handwheel

GWB051H (Size: 1/2", 13mm)

GWB076H (Size: 3/4", 20mm)

GWB101H (Size: 1"0,  25mm)

GWB126H (Size: 1-1/4", 32mm)

GW150H (Size: 1-1/2", 40mm)

GW200H (Size: 2"0, 50mm)

GW251H (Size: 2-1/2", 65mm)

GW301H (Size: 3"0, 80mm)

GW402H (Size: 4"0, 100mm)

GW500H (Size: 5"0, 125mm)

GW600H (Size: 6"0, 150mm)

GW800H (Size: 8"0, 200mm)

GW1000H (Size: 10"0, 250mm)

GW1200H (Size: 12"0, 300mm)

GW1400H (Size: 14"0, 350mm)


Globe, Seal Cap

GWB051C (Size: 1/2", 13mm)

GWB076C (Size: 3/4", 20mm)

GWB101C (Size: 1"0, 25mm)

GW126C (Size: 1-1/4", 32mm)

GW150C (Size: 1-1/2", 40mm)

GW200C (Size: 2"0, 50mm)

GW251C (Size: 2-1/2", 65mm)

GW301C (Size: 3"0, 80mm)

GW402C (Size: 4"0, 100mm)

GW500C (Size: 5"0, 125mm)

GW600C (Size: 6"0, 150mm)

GW800C (Size: 8"0, 200mm)

GW1000C (Size: 10"0, 250mm)

GW1200C (Size: 12"0, 300mm)

GW1400C (Size: 14"0, 350mm)


Angle, Handwheel

AWB050H (Size: 1/2", 13mm)

AWB075H (Size: 3/4", 20mm)

AWB100H (Size: 1"0, 25mm)

AWB125H (Size: 1-1/4", 32mm)

AW150H (Size: 1-1/2", 40mm)

AW200H (Size: 2"0, 50mm)

AW251H (Size: 2-1/2", 65mm)

AW301H (Size: 3"0, 80mm)

AW402H (Size: 4"0, 100mm)

AW500H (Size: 5"0, 125mm)

AW600H (Size: 6"0, 150mm)

AW800H (Size: 8"0, 200mm)

AW1000H (Size: 10"0, 250mm)

AW1200H (Size: 12"0, 300mm)

AW1400H (Size: 14"0, 350mm)

AW1600H (Size: 16"0, 400mm)

AW1800H (Size: 18"0, 450mm)


Angle, Seal Cap

AWB050C (Size: 1/2", 13mm)

AWB075C (Size: 3/4", 20mm)

AWB100C (Size: 1"0, 25mm)

AWB125C (Size: 1-1/4", 32mm)

AW150C (Size: 1-1/2", 40mm)

AW200C (Size: 2"0, 50mm)

AW251C (Size: 2-1/2", 65mm)

AW301C (Size: 3"0, 80mm)

AW402C (Size: 4"0, 100mm)

AW500C (Size: 5"0, 125mm)

AW600C (Size: 6"0, 150mm)

AW800C (Size: 8"0, 200mm)

AW1000C (Size: 10"0, 250mm)

AW1200C (Size: 12"0, 300mm)

AW1400C (Size: 14"0, 350mm)

AW1600C (Size: 16"0, 400mm)

AW1800C (Size: 18"0, 450mm)

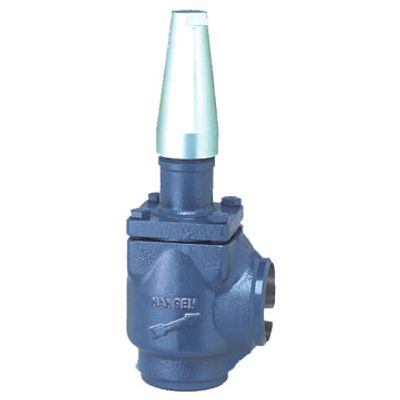

Butt Weld Shut Off Valve, Hansen Technologies Ammonia Refrigeration

Butt Weld Shut Off Valve, Hansen Technologies Ammonia Refrigeration

technical catalog

SOV Butt Weld Shut Off Valve 2019 (pdf)Download
Butt Weld SOV (pdf)Download
Butt Weld Rebuild Kit (pdf)Download
